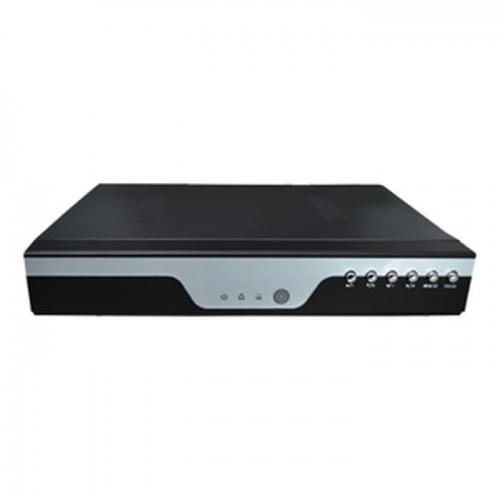

DVR SILICON SDVR-6108HL-1 Hybrid DVR 1080p

DVR SILICON SDVR-6108HL-1 Hybrid DVR 1080p

Brands
Product Code: SDVR-6108HL-1
Dimensions (L x W x H): 26 x 22 x 4 (Centimeter)
Weight: 2 Kilogram
Rp1,320,000.00
Product details of DVR SILICON SDVR-6108HL-1 Hybrid DVR 1080p

Description

DVR digunakan untuk memonitor atau merekam video dari CCTV dan disimpan ke harddisk. Penggunaan DVR disarankan menggunakan LCD TV atau LED TV atau LCD Monitor atau LED Monitor agar hasil yang didapat lebih maksimal. DVR dapat juga dimonitor lewat smartphone.

SDVR memiliki mode hybrid. Hybrid artinya SDVR dapat digunakan sebagai DVR, NVR, ataupun keduanya.

Spesifications :
System
Main processor :
Industrial grade embedded micro controller chip Huawei HIS chipset Hi3531
Operating system : Embedded LINUX operating system
System resource :
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Display
Operation interface : 16 bit real color GUI interface support mouse operation
Display screen : Take all analog input as an example, others are depended on the selected channel mode
1/4 /8/9screen
Video
Image encode : H.264(High Profile)
Monitor quality : VGA1080P HDMI1080P
Playback quality : Max support 1080P under HVR and NVR modeMax support AHD 1080P under DVR mode
Encode capability : 8CH AHD 1080P@15FPS/8CH AHD 720P real time(DVR mode)
Decode capability : 4CH AHD 1080P@15FPS/8CH AHD 720P real time(DVR mode)
Multi-mode video input :
DVR mode :8CH*1080P@15FPS/4CH*1080P@25FPS
HVR mode:2CH*1080P(analog)+2CH*1080P(network)/8CH*720P+8CH*720P
NVR mode:4CH*1080P/1CH*1080P+8CH*720P/20CH*960H
Motion detection : Each channel can set 19216*12detection areacan set multi-level of flexibility (for local analog channel only)
Audio
Audio compression : G.711A
Record and playback
Record mode : Manualalarmmotion detectiontiming
Local playback : 1-4ch playback synchronously; Under the mode of DVR, Max support 4CH AHD 1080P playback synchronously
Video search : Timedateeventchannel search
Storage and back up
Space occupation : Video:1080P 20~30G/day*channel720P:20G/day*channel960H:12~20G/day*channel
audio691.2M/day*channel
Dimension : 260(Length) x 221(Width) x 44(Height)
