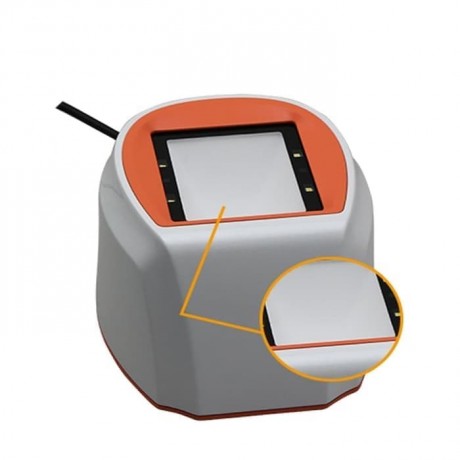

Barcode Scanner SILICON XL-2300 Desktop Scanner 2D
Description
Barcode Scanner digunakan untuk membaca kode-kode berbentuk garis-garis
vertikal (disebut Barcode) yang terdapat pada produk-produk konsumen,
kartu-kartu identitas (kartu anggota, SIM, KTP, dll) untuk
mengidentifikasi pemegang kartu; pelacakan distribusi barang dalam jasa
persewaan, pengiriman barang dan sebagainya.
Keunggulan Barcode Scanner:
Dapat membaca atau merekam data lebih cepat dibandingkan dengan melakukan proses input data secara manual.
Fitur Produk :
- Mampu membaca barcode 1D(code garis hitam vertikal) & 2D (QRCode : Quick Response Code) dari ponsel
- Mampu membaca barcode 1D(code garis hitam vertikal) & 2D (QRCode : Quick Response Code) yang tercetak di atas kertas
- Menghasilkan pembacaan barcode yang mudah dan akurat
- Penggunaan Aplikasi di Pembayaran Mobile, sistem POS,E-tiket.
Spesifications : Model No. XL-2300
- Image Sensor : CMOS
- Image Size : 752 x 480
- Light Source : White Light, LED
- Minimum Resolution : >5 mil Precision
* Scanning angle :
- Roll : 360, Skew : -+40, Pitch : -+300
- Viewing angle : Horizontal : 70 - Vertical : 50
- Scan Mode : Sense
- Interface RS232, USB
- Size : L x W x H : 115mm x 98mm x 79mm
- Weight :185 g
- Indicator : Voice ; adjust to volum and tone
- Voltage : 5VDC -+5%
- Current (Working) : 180 mA (typical value), 114mA (Maximum value)
- Operating Temperature : -20 C to 60 C
- Storage Temperature : -40 C to 70 C
- Humidity : 5%-95% (RH)
- Light Levels : 0-100.000 Lux
- Drop test : 2m
* Decoding Capability :
- 1D : EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar,
- Code 128(FNC1 / FNC2 / FNC3), Code 93, ITF-6, ITF-14
- Interleaved 2 of 5, Industrial 2 of 5, Standart 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39
(Code 39 FULL ASCII), Code 11, MSI-Plessey, Plessey etc.
- 2D : PDF417, Data Matrix, QR Code, Chinese sensible code, etc
