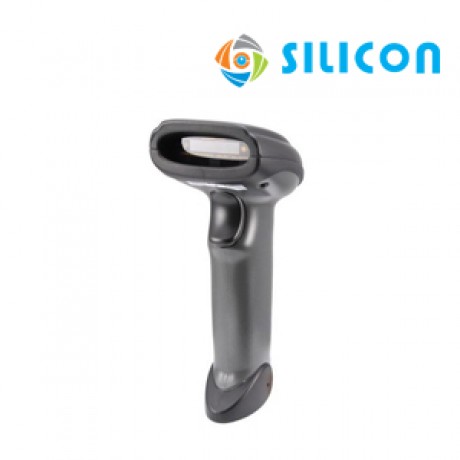

SILICON BARCODE SCANNER XL-3600

Description:

Barcode Scanner digunakan untuk membaca kode-kode berbentuk garis-garis vertikal (disebut Barcode) yang terdapat pada produk-produk konsumen, kartu-kartu identitas (kartu anggota, SIM, KTP, dll) untuk mengidentifikasi pemegang kartu; pelacakan distribusi barang dalam jasa persewaan, pengiriman barang dan sebagainya.
Keunggulan Barcode Scanner:
Dapat membaca atau merekam data lebih cepat dibandingkan dengan melakukan proses input data secara manual.

Specifications:
XL-3600 Handheld 2D Barcode Scanner
Read All Major 1D and 2D Barcode Symbologies
Reliable Safety Design with CE, EMC, RoHS, Class I Laser Safety
Ergonomic, Snappy and Stylish Design
Suit for All POS systems
Read Inverse Barcode Symbology
Read Barcode Symbology on Phone Screen
Antiknock Design: Withstand 1.5M Drops
Full Independent Intellectual Property Rights

XL-3600 Technical Specifications :
Image Sensor : CMOS
Image size : 640480 pixels
Light Source : Red Light, LED, 625nm10nm
Precision : 5mil(1D),, 6.8mil(QR) (2D),
Depth of Scan Field : 50-300mm(UPC-A,13mil), 25-280mm(QR Code, 20mil)
Symbologies (1D, 2D) :
- 1D: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc
- 2D: PDF417, QR Code (Model 1/2, miroco), DataMatrix (ECC200, ECC000,050, 080, 100,140) etc
Sensitivity:Roll : 360 Pitch and 0 Skew
Skew : 50 Roll and 0 Pitch
Pitch : 50 Roll and 0 Skew
Support Interface : USB HID-KBW, USB COM Port, USB POS, USB Datapipe or RS232
Print Contrast Signal : 30%
Indicator : Buzzer, LED
Scan Mode : Manual

PHYSICAL PARAMETER
Dimension : L W H: 170mm 68mm 98mm
Weight : 228g
IP rating : IP54
Material : ABS+PC
Cable length : 2 m

ELECTRICALS
Power Consumption : 2 W
Voltage : DC 3.3 0.3V
Current (Working) : 133mA
Current (Idle) : 99mA
Current (Sleep):33mA

ENVIRONMENTS
Operate Temperature : - 5 + 45
Storage Temperature : - 40 + 60
Humidity : 5% 95%
Illumination : 1 10000LUX
Certification : CE (EMC) Class B, IP54, Rohs
Box Size : 24 cm 11 cm 8 cm
