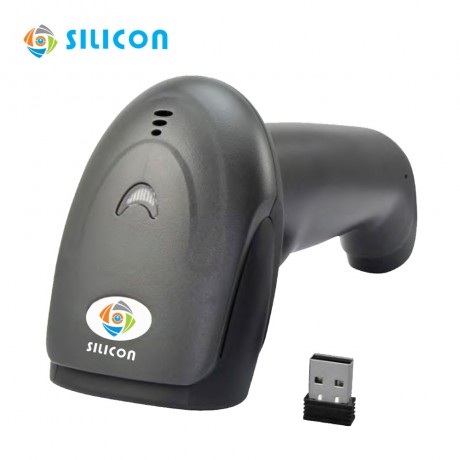

Silicon Barcode Scanner XL-9322B

Barcode Scanner digunakan untuk membaca kode-kode berbentuk garis-garis vertikal (disebut Barcode) yang terdapat pada produk-produk konsumen, kartu-kartu identitas (kartu anggota, SIM, KTP, dll) untuk mengidentifikasi pemegang kartu; pelacakan distribusi barang dalam jasa persewaan, pengiriman barang dan sebagainya.

Keunggulan Barcode Scanner:
Dapat membaca atau merekam data lebih cepat dibandingkan dengan melakukan proses input data secara manual.

Specifications:
MODEL : XL-9322B
PERFORMANCE PARAMETER
Light Source : White LED (Lighting)
CPU : MIPS @1GHz
Image Sensor : CMOS
Pixels : 640x480 pixels
Precision : 4 mil
Depth of Scan Field : 20-220mm (13mil PCS90%)
Sensitivity
Roll : 360° Skew:±65° Pitch:±60°
Wireless Performance
2.4G : 100M distance (open space);
Bluetooth (4.0 HID) : 10M distance(open space)
Scan Speed : 30fps/s
Memory capacity : Up to 520,000 characters (40,000 EAN 13 barcodes)
Scan Mode : Manual & Continuous
Decoding Capability :
1D : UPC-A; UPC-E; EAN-8; EAN-13; Code39; Codabar; Code128; Interleaved 2 of 5; Industrial 2 of 5; Matrix 2 of 5; Code 93; UCC/EAN 128; Code 11; MSI; UK/Plessey ; ISBN/ISSN; GS1 Databar Expanded; GS1 Databar; GS1 Databar Limited.
2D : QR code; PDF 417; Datamatrix
PHYSICAL PARAMETER
Dimension : Scanner: L × W × H:170mm × 73mm × 102mm
Receiver : L × W × H:19mm × 14mm × 6mm
Weight : 180g
Material : ABS+PC
Battery :
Rechargeable lithium battery,
2200 mAh,
16 hours (continuous working )
Current(working) :
350MA(Working current),
106MA(Static current),
<1uA(Standby current)
Temperature :
-20℃- 55℃(working temperature),
- 40℃- 80℃(Storage temperature)
Support Interface : USB,USB-VCP(2.4G& micro USB cable mode)
Charging Mode :
Micro USB charging ,
DC5V (charging voltage),
4.5 hours (charging time)
Communication mode : 2.4G, bluetooth, micro USB cable
Indicator : Double LED indicator, buzzer
Humidity : 5% to 95%
Illumination : 0-100000 lux
