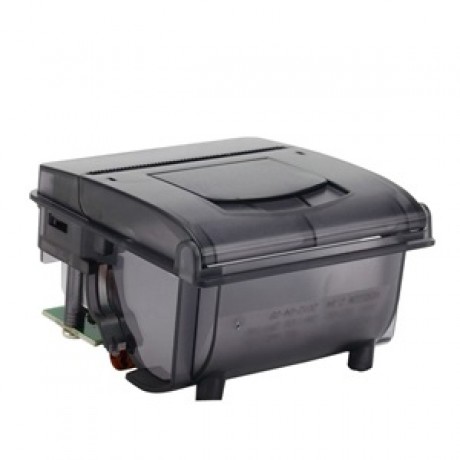

Printer SILICON SP-402 Panel Printer Direct Thermal Print and Auto Paper Feed
Rp400,000.00
Share This
Product details of Printer SILICON SP-402 Panel Printer Direct Thermal Print and Auto Paper Feed
Description
Panel Printer
Specifications:
| MODEL | SP-402 |
| PAPER WORKING | |
| Loading Way | Easy |
| Cutting Way | Divulsion (Dentiform) |
| PRINTER PERFORMANCE | |
| Print Method | Direct Thermal Print and Auto Paper Feed |
| Printing Density | 384 dots/line, 8 dots/mm |
| Printing Width | 48 mm |
| Max Printer Speed | 85 mm/s (max.) |
| Dot Distance | 0.125 mm |
| DRAWING/BARCODE | |
| Word Size (WH mm) | 0.751 |
| Dots | 16 Lattice: 816; 24 Lattice: 1224 |
| ASC Size (WH mm) | 16 Lattice: 24; 24 Lattice: 1.53 |
| Suitable | Testing Method |
| Lacking Paper Testing | Photoelectricity Sensor |
| CONTROL SYSTEM | |
| Printer Interface | TTL/RS232 |
| Buffer | 32k |
| Command System | ESC Printer Command/WH Printing Command |
| POWER | |
| Working Voltage | DC3.5V--9V (from 7.2-5V, with Highest Speed and Excellent Effect!) |
| Average Electricity | Less Than 1.5A |
| Max Electricity | Less Than 3A |
| PRINTER MECHANISM | |
| Printing Head Lifespan | 50km |
| PAPER | |
| Paper Item | Thermal Paper |
| Paper Width | 58mm |
| Paper Thickness | 655μm |
| Diameter of Paper Roll | 30mm |
| PHYSICS SPECIFICATION | |
| Environment Adaptability | 0°C ~ 55°C; -20°C ~ 55°C, 1090%RH |
| Storage Temperature | 25°C ~ 70°C, 1090%RH |
| Dimension (W × H × D) | 76.8mm × 77.4mm × 43.5mm |
