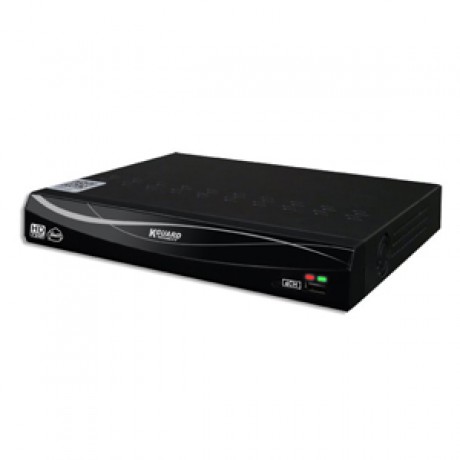

DVR K-GUARD EL-431 AHD DVR 1.0 MP 4-CH
Description
DVR digunakan untuk memonitor atau merekam video dari CCTV dan disimpan
ke harddisk. Penggunaan DVR disarankan menggunakan LCD TV atau LED TV
atau LCD Monitor atau LED Monitor agar hasil yang didapat lebih
maksimal. DVR dapat juga dimonitor lewat smartphone.
Keunggulan:
DVR AHD ini dapat merekam video dengan kualitas HD 720p.
Specifications:
|
EL431 Specifications |
|
|
Model No. |
EL431 |
|
No. of Channel |
4 Channels |
|
Cloud |
|
|
Cloud Storage |
No |
|
Storage Mode |
No |
|
Video |
|
|
Video Format |
NTSC / PAL |
|
Video Input |
4 BNC Inputs |
|
Video Output |
1 VGA & 1 HDMI Outputs |
|
Video Output Resolution |
VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1280x720 |
|
Audio |
|
|
Audio Input |
4 RCA Inputs |
|
Audio Output |
1 RCA Output |
|
Recording |
|
|
Video Compression |
H.264 |
|
Recording Frame Rate NTSC |
15fps@720P (1280x720) per Channel |
|
Recording Mode |
Always / Manual / Motion Detection / Schedule / KGUARD Alarm Sensor |
|
HDD Interface |
1 SATA |
|
HDD Support |
1 SATA |
|
HDD Support |
Up to 4TB |
|
Network |
|
|
KView Easy Connectivity |
Yes |
|
MyKGUARD Support |
No |
|
UPnP Support |
Yes |
|
DDNS Support |
Yes |
|
Network Interface |
RJ45, 10M/100M |
|
Network Type |
DHCP, Static IP, PPPoE |
|
Playback |
|
|
Local Playback |
Max. 4 Channels Simultaneously |
|
Playback Search |
Date & Time / Event List / Smart Search |
|
Playback Mode |
Play, Fast Forward, Fast Rewind, Zoom |
|
General |
|
|
PTZ Control |
No |
|
E-SATA Port |
No |
|
Sensor & Alarm I/O Port |
KGUARD Wireless Alarm Kit via RJ9 port |
|
IR Extender Port |
No |
|
Backup Method |
HDD, USB, Network |
|
Power Supply |
12V/2A |
|
Operating Temperature (W/O HDD) |
-10℃ to 50℃ ( 14°F to 122°F ) |
|
Storage Temperature |
-20℃ to 70℃ ( -4°F to 158°F ) |
|
Working Humidity |
10%~90% |
|
Dimension (LxWxH) in mm |
300x227x53 |
|
Gross Weight |
2 kg |
|
Box Size |
43 cm × 10 cm × 28 cm |
