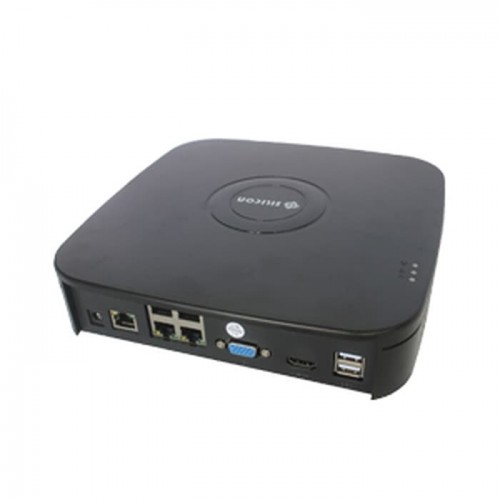

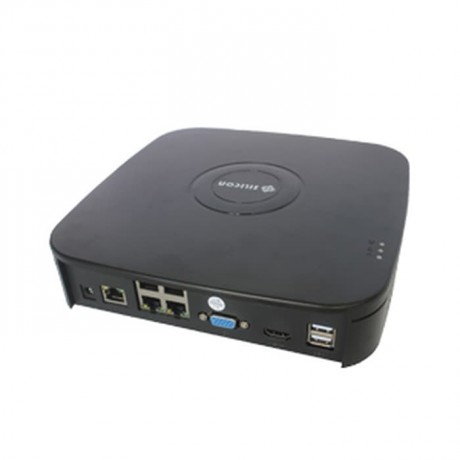

NVR SILICON CK-PA9104 POE NVR 4-Channel
Description
NVR SILICON CK-PA9104 POE NVR 4-Channel
NVR with POE digunakan untuk
memonitor atau merekam video dari IP Camera dan disimpan ke harddisk.
Penggunaan NVR disarankan menggunakan LCD TV atau LED TV atau LCD
Monitor atau LED Monitor agar hasil yang didapat lebih maksimal. NVR
dapat juga dimonitor lewat smartphone.
Specifications:
Model : 4CH
Operating system : LINUX
Compression Standard : Standard H.264
IPC Input : 4CH(, 1280960, 1280720 etc.)
HD Output : 1CHHD port; resolution:1920x1080P/60Hz
VGA Output : 1CHVGA port; resolution:1920x1080P/60Hz
Preview resolution : 4xD1/1x1080P(single channel for the IPC main stream, multi-channel for sub-stream)
Video Resolution : 4CH1080P/ 9CH960P/4CH720P, etc.according to IPC input
Video Frame Rate : PAL: 25 frames / sec; NTSC: 30 frames / sec.
Local Playback : Single-channel playback 1x1080P
Backup : Support local, network backup
Hard disk : One SATA hard drive (maximum 4TB)
Network interface : 1 RJ-45 port(10/100Mbps)
Support mobile : iPhone, iPad, Android
Browser : IE8.0 and above,Firefox,Google
Support Agreement : ONVIF2.4
USB Interface : Two USB2.0 interface
Multi-operation : Support for recording, playback, network, backup, mobile monitoring and interface operation
Dual-stream : Yes
Operating Voltage : DC 15V DC 48V
Operating Temperature : -10 55
Humidity : 10%90%
Power Consumption : 60W
Box Dimension : 35 cm 8 cm 26.5 cm
Gross Weight : 1.5kg
