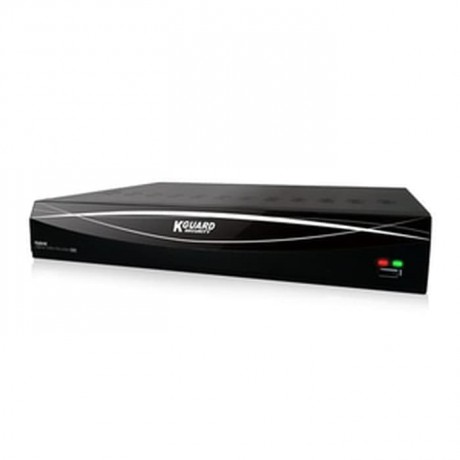

DVR K-GUARD HD-481 AHD DVR 2.0 MP 4-CH
Description
Specifications:
|
HD481 Specifications |
|
|
Model No. |
HD481 |
|
Video Input |
6 Channels ※ |
|
Picture Saved to Cloud |
|
|
Cloud Storage |
Dropbox |
|
Capture Mode |
Interval / Motion Detection |
|
Picture Saved to DVR |
|
|
Resolution |
Mainstream / Substream |
|
Capture Mode |
Manual / Schedule / Motion Detection |
|
Video |
|
|
Video Format |
NTSC / PAL |
|
Video Input BNC |
4 Inputs |
|
BNC & IP |
Up to 6 Inputs (BNC x4 + IP x2 ※) |
|
IP only |
6 Inputs ※ |
|
Video Output |
1 VGA & 1 HDMI Outputs |
|
Video Output Resolution |
VGA: 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p |
|
Audio |
|
|
Audio Input |
4 RCA Inputs |
|
Audio Output |
1 RCA Output |
|
Recording |
|
|
Video Compression |
H.264 |
|
Analog Recording Frame Rate |
60fps@1080p (1920x1080), 120fps@720p (1280x720), 120fps@WD1 (960×480) |
|
IP IP Camera Support |
8MP/5MP/4MP/3MP/2MP/1MP/D1 |
|
Total FPS |
30fps |
|
Max. IP Bandwidth per Channel |
4Mbps |
|
Recording Mode |
Continuous / Manual / Schedule / Motion Detection |
|
HDD Interface |
1 SATA |
|
HDD Support |
Up to 6TB |
|
Network |
|
|
KView Easy Connectivity |
Yes |
|
FTP Support |
Yes |
|
UPnP Support |
Yes |
|
DDNS Support |
Yes |
|
Network Interface |
RJ45, 10M/100M |
|
Network Type |
DHCP, Static IP, PPPoE, 3G |
|
Playback |
|
|
Local Playback |
Max. 4 Channels Simultaneously |
|
Playback Search |
Date & Time / Event List / Pitcture / Smart Search |
|
Playback Mode |
Play, Fast Forward, Fast Rewind, Zoom |
|
Remote Playback |
4 channels simultaneously via CMS or IE |
|
General |
|
|
PTZ Control |
RS485 Built-In & Coaxial Protocol (Nextchip) |
|
Backup Method |
HDD, USB, Network |
|
Power Supply |
12V/2A |
|
Operating Temperature (W/O HDD) |
-10℃ to 50℃ ( 14°F to 122°F ) |
|
Storage Temperature |
-20℃ to 70℃ ( -4°F to 158°F ) |
|
Working Humidity |
10%~90% |
|
Dimension (LxWxH) in mm |
300X227X53 |
|
Box Size |
4.25 cm × 27 cm × 10 cm |
|
Gross Weight |
1.75kg |
