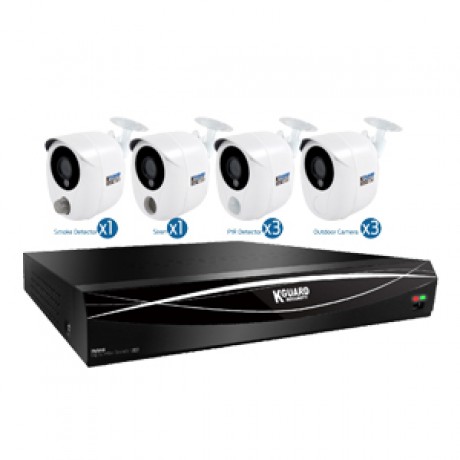

DVR K-GUARD HD1681-8KT01 DVR KIT AHD 2.0 MP Hybrid Security System
Description
DVR digunakan untuk memonitor atau merekam video dari CCTV dan disimpan ke harddisk. Penggunaan DVR disarankan menggunakan LCD TV atau LED TV atau LCD Monitor atau LED Monitor agar hasil yang didapat lebih maksimal. DVR dapat juga dimonitor lewat smartphone.
Specifications:
HD 1681-8KT01 -Video Input : 24 Channels
Picture Saved to Cloud Storage : Dropbox, -Capture Mode: Interval / Motion Detection.
Picture Saved to DVR Resolution : Mainstream / Substream, -Capture Mode : Manual /Schedule / Motion Detection
Video
Video Input BNC : 16 Inputs, -BNC & IP : Up to 24 Inputs (BNC x16 + IP x8)
IP only : 24 Inputs, -Video Output : 1 VGA & 1 HDMI Outputs
Video Output Resolution : "VGA: 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p"
Audio Input : 4 RCA Inputs, -Audio Output : 1 RCA Output
Recording
Video Compression : H.264
Analog Recording Frame Rate : 240fps@1080 (960x1080), 240fps@720p (1280x720),480fps@WD1(960x480) , -IP Camera Support : 8MP/5MP/4MP/3MP/2MP/1MP/D1, -Total FPS : 35fps
Max. IP Bandwidth per Channel : 3Mbps, -Recording Mode : Continuous / Manual / Schedule / Motion Detection, -HDD Interface : 1 SATA, -HDD Support : Up to 6TB
Network
KView Easy Connectivity : Yes, -FTP Support : Yes, -UPnP Support : Yes, -DDNS Support :Yes, -Network Interface : RJ45, 10M/100M, -Network Type : DHCP, Static IP, PPPoE, 3G
General
PTZ Control : RS485 Built-In & Coaxial Protocol (Nextchip), -Backup Method : HDD, USB, Network, -Power Supply : 12V/2A
CCTV Camera Specifications :
Model Name:WA812M - WP820A (PIR) - WR820A(SIREN) - WS820A(SMOKE)
Video Image Sensor : 1/3" 2-Megapixel CMOS Image Sensor
Horizontal Resolution : 1936x1096, -Lens : 3.6mm, -Viewing Angle : 75 Degrees
Minimum Illumination : While Infrared LED on "0" lux, -Night Vision Distance : 20m / 65ft, -Illumination : Mini Array x 12, -Indoor / Outdoor : Weatherproof (Both) - Indoor, Body Construction : Plastic
Weight : 8000 gr
Box Dimenssions : 44.5 x 29 x 30 cm
