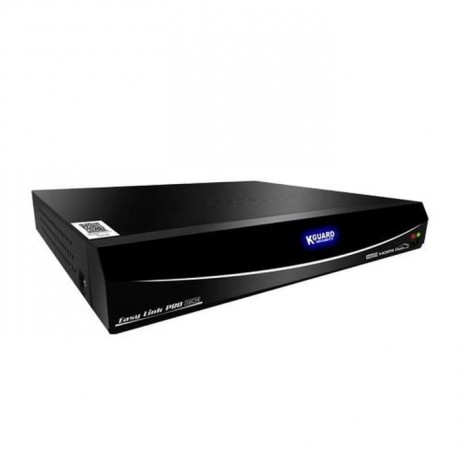

DVR K-GUARD EL-1622 DVR Analog 16-CH
Description
DVR digunakan untuk memonitor atau merekam video dari CCTV dan disimpan
ke harddisk. Penggunaan DVR disarankan menggunakan LCD TV atau LED TV
atau LCD Monitor atau LED Monitor agar hasil yang didapat lebih
maksimal. DVR dapat juga dimonitor lewat smartphone.
Specifications:
|
EL1622 Specifications |
|
|
Model No. |
EL1622 |
|
No. of Channel |
16 Channels |
|
Cloud |
|
|
Cloud Storage |
Yes |
|
Storage Mode |
Schedule / Motion Detection |
|
Video |
|
|
Video Format |
NTSC / PAL |
|
Video Input |
16 BNC Inputs |
|
Video Output |
1 VGA, 1 BNC, 1 HDMI Outputs |
|
Video Output Resolution |
"VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p" |
|
Audio |
|
|
Audio Input |
4 RCA Inputs |
|
Audio Output |
1 RCA Output |
|
Recording |
|
|
Video Compression |
H.264 |
|
Recording Frame Rate D1 NTSC |
480fps@CIF (360×240), 240fps@HD1 (720x240), 240fps@D1 (720x480) |
|
PAL |
400fps@CIF (360×288), 192fps@HD1 (720x288), 192fps@D1 (720x576) |
|
960H NTSC |
480fps@WCIF (480×240), 176fps@WHD1 (960×240), 176fps@WD1 (960×480) |
|
PAL |
400fps@WCIF (480×288), 144fps@WHD1 (960×288), 144fps@WD1 (960×576) |
|
Recording Mode |
Always / Manual / Motion Detection / Schedule / Sensor / Alarm |
|
HDD Interface |
1 SATA |
|
HDD Support |
Up to 4TB |
|
Network |
|
|
Plug & Play |
Yes |
|
Network Interface |
RJ45, 10M/100M |
|
Network Type |
DHCP, PPPoE, Static IP |
|
Playback |
|
|
Local Playback |
Max. 4 Channels Simultaneously |
|
Playback Search |
Date & Time / Event List / Time Bar |
|
Playback Mode |
Play, Fast Forward, Fast Rewind, Slow Motion, Zoom |
|
General |
|
|
PTZ Control |
RS485 Built-In, supports PELCO-P & PELCO-D |
|
Sensor & Alarm I/O Port |
Yes |
|
IR Extender Port |
Yes |
|
Backup Method |
HDD, USB, Network |
|
Power Supply |
12V/2A |
|
Operating Temperature (W/O HDD) |
-10℃ to 50℃ ( 14°F to 122°F ) |
|
Storage Temperature |
-20℃ to 70℃ ( -4°F to 158°F ) |
|
Dimension (LxWxH) in mm |
300x220x50 |
