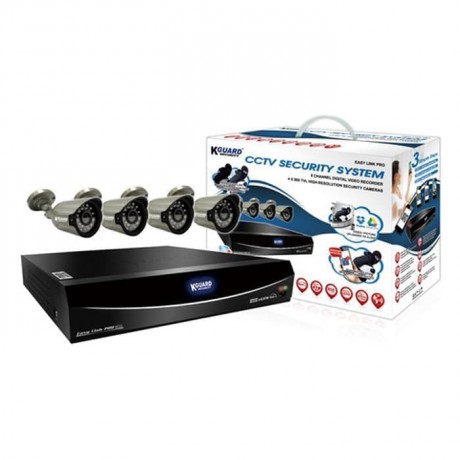

DVR KIT K-GUARD EL-822 CKT005 DVR KIT Analog 8-CH 4-Camera
Description
DVR digunakan utk merekam video dr CCTV & disimpan ke HDD. Pengguna
DVR disarankan menggunakan LED TV / LCD Monitor. Agar hasil lebih
maksimal. DVR juga dimonitor via smartphone. DVR Kit paketan terdiri:
DVR, CCTV & kabel video.
Paketan terdiri dari :
* 8CH 960H recording & playback, Easy Link Technology & Cloud Storage service
* 2PCS : 3.6MM + 2PCS : 6MM/Lens
800TVL CMOS Camera, Night Vision 25m (82ft) & 4PCS Slim Cable (18M)
Specifications:
-
Model EL822 - CH: 8 CH -Cloud Storage: Yes, Storage Mode: Schedule /
Motion Detection, - Video Format: NTSC / PAL -Input: 8 BNC -Output:
1VGA, 1BNC, 1 HDMI -Video -
- Output Resolution: "VGA: 800x600,
1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p" - Audio: 2 RCA
Inputs & 1 RCA Output
Recording
- Video Compression: H.264
- Frame Rate D1 NTSC: 240fps@CIF (360240), 240fps@HD1 (720x240), 240fps@D1 (720x480)
- PAL: 200fps@CIF (360288), 200fps@HD1 (720x288), 200fps@D1 (720x576)
- 960H NTSC: 240fps@WCIF (480240), 88fps@WHD1 (960240), 88fps@WD1 (960480)
- PAL: 200fps@WCIF (480288), 72fps@WHD1 (960288), 72fps@WD1 (960576
- Recording Mode: Always / Manual / Motion Detection / Schedule
- HDD: 1 SATA,Support:Up to 4TB
Network Plug & Play: Yes - Network Intrfc : RJ45, 10M/100M, Network Type: DHCP, PPPoE, Static IP
Playback
Local: Max. 4 CH Simultaneously - Search : Date & Time / Event List
/ Time Bar - Mode: Play, Fast Forward, Fast Rewind, Slow Motion, Zoom
PTZ Control: RS485 Built-In, supports PELCO-P & PELCO-D
- Backup Method: HDD, USB, Network & Power Supply : 12V/2A
CCTV Camera Specifications Model Name: HW927B & HW912A
- Img Sensor: 1/3" CMOS with IR Cut Filter / Resolution : 800TVL
- Lens HW927B: 6mm Fxd & HW912A : 3.6mm Fxd
- Viewing Angle: - HW927B : 50 Degrees - HW912A : 75 Degrees
- Video Output: 1.0VP-P, 75 - S/N Ratio : More than 48dB (AGC OFF)
- In/Outdoor: Weatherproof (Both), Body : Aluminium
Weight : 6000 gr
Box Dimenssions : 38 x 19.5 x 29 cm
