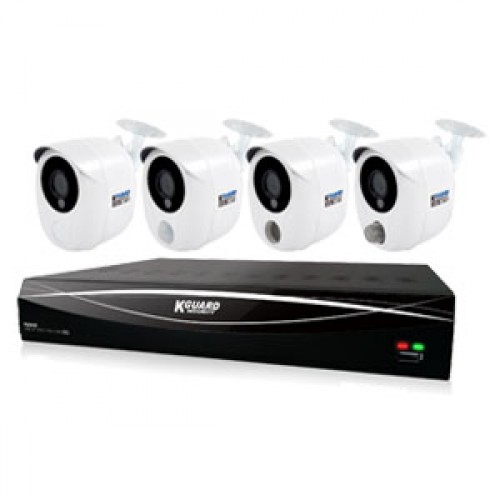

DVR KIT K-GUARD HD481-4KT01 DVR AHD 2.0 MP 4-CH Hybrid Security System Alarm

HD481-4KT01 AHD

Model No.

HD481

Video Input

6 Channels

Picture Saved to Cloud

Cloud Storage

Dropbox

Capture Mode

Interval / Motion Detection

Picture Saved to DVR

Resolution

Mainstream / Substream

Capture Mode

Manual / Schedule / Motion Detection

Video

Video Input BNC

4 Inputs

BNC & IP

Up to 6 Inputs (BNC x4 + IP x2 ※)

IP only

6 Inputs ※

Video Output

1 VGA & 1 HDMI Outputs

Video Output Resolution

"VGA: 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p"

Audio

Audio Input

4 RCA Inputs

Audio Output

1 RCA Output

Recording

Video Compression

H.264

Analog Recording Frame Rate

60fps@1080p (1920x1080), 120fps@720p (1280x720), 120fps@WD1 (960×480)

IP IP Camera Support

8MP/5MP/4MP/3MP/2MP/1MP/D1

Total FPS

30fps

Max. IP Bandwidth per Channel

4Mbps

Recording Mode

Continuous / Manual / Schedule / Motion Detection

HDD Interface

1 SATA

HDD Support

Up to 6TB

Network

KView Easy Connectivity

Yes

FTP Support

Yes

UPnP Support

Yes

DDNS Support

Yes

Network Interface

RJ45, 10M/100M

Network Type

DHCP, Static IP, PPPoE, 3G

Playback

Local Playback

Max. 4 Channels Simultaneously

Playback Search

Date & Time / Event List / Pitcture / Smart Search

Playback Mode

Play, Fast Forward, Fast Rewind, Zoom

Remote Playback

4 channels simultaneously via CMS or IE

General

PTZ Control

RS485 Built-In & Coaxial Protocol (Nextchip)

Backup Method

HDD, USB, Network

Power Supply

12V/2A

Operating Temperature (W/O HDD)

‒10˚C to 50˚C (14˚F to 122˚F)

Storage Temperature

‒20˚C to 70˚C (‒4˚F to 158˚F)

Working Humidity

10%~90%

Dimension (LxWxH) in mm

300X227X53

CCTV Camera Specifications

Model Name

WA812M

WP820A

(PIR)

WR820A

(SIREN)

WS820A

(SMOKE)

Video

Image Sensor

1/3" 2-Megapixel CMOS Image Sensor

Horizontal Resolution

1936x1096

Lens

3.6mm

Viewing Angle

75 Degrees

Day / Night Mode

Color during day / switches to B&W at night

Minimum Illumination

While Infrared LED on "0" lux

Night Vision

Night Vision Distance

20m / 65ft

Illumination

Mini Array x 12

Add-on Type

Add-on Type

n/a

Infrared

Siren, sound

Smoke Sensor

PIR Sensor

volume up to 110dB

Detection Range

n/a

5~8 meters

n/a

Detection

threshold

300ppm

Detection Angle

n/a

90°

n/a

n/a

General

Indoor / Outdoor

Weatherproof (Both)

Indoor

Operating Temperature

-10~50°C / 14~122°F

Storage Temperature

-20~70°C / -4~158°F

Body Construction

Plastic

Dimensions

123x86x66mm

Camera with Stand

Weight

176.4g

183.5g

Camera with Stand
