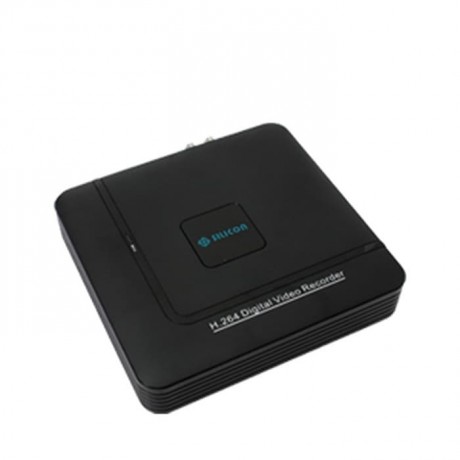

DVR SILICON TR-001-4CHA DVR AHD 4-CH
Description
DVR digunakan untuk memonitor atau merekam video dari CCTV dan disimpan
ke harddisk. Penggunaan DVR disarankan menggunakan LCD TV atau LED TV
atau LCD Monitor atau LED Monitor agar hasil yang didapat lebih
maksimal. DVR dapat juga dimonitor lewat smartphone.
Keunggulan:
DVR AHD ini dapat merekam video dengan kualitas HD 720p.
Specifications:
|
Model |
TR-001-4CHA |
||
|
System |
Video Compression Format |
H.264 |
|
|
Main Processor |
HI3520D + NVP1918C/6114 |
||
|
Video System |
NTSC / PAL |
||
|
Operation System |
Embedded Linux |
||
|
AHD Signal System |
AHD-L (960H) / AHD-M (720P) (Analog High Definition) |
||
|
Video |
Video Input |
1CH BNC |
|
|
Video Output |
1 x VGA / 1 x HDMI (1920*1080) |
||
|
Video Distance |
75-3 cable up to 500 Meters distance, Video no Decay and Distortion |
||
|
Audio |
Audio Input |
1CH RCA |
|
|
Audio Output |
1CH RCA |
||
|
Bidirectional Talk |
YES |
||
|
Recording |
Recording Channel |
4CH 720P Real Time |
|
|
Resolution |
NTSC - D1 (704 x 480) / 720P (1280 x 720) |
||
|
PAL - D1 (704 x 576) / 720P (1280 x 720) |
|||
|
Frame Rate |
NTSC 30fps / PAL 25fps |
||
|
Recording Mode |
Manual / Alarm / Video Detection / Continuous |
||
|
Playback |
Playback Channel |
4CH 720P Real Time |
|
|
Search Mode |
Time / Date / Alarm / Motion Detection / Exact Search |
||
|
Playback Mode |
Normal Play / Fast Forward / Fast Rewind / Frame by Frame |
||
|
Playback Software |
General H.264 Player V1.7.0. |
||
|
Alarm |
Alarm Input |
N/A |
|
|
Alarm Output |
N/A |
||
|
Storage |
HDD Interface |
1 x SATA Fixed HDD |
|
|
Capability |
SATA HDD up to 4TB each |
||
|
Backup |
USB Disk |
2 x USB 2.0 port |
|
|
SNAP Image |
NO |
||
|
Backup Format |
H.264 (only for Playback Software - General H.264 Player V1.7.0.) |
||
|
Backup Mode |
Network download / Flash USB / movable HDD/SATA HDD / DVD-RW |
||
|
PTZ |
PTZ |
N/A |
|
|
Protocol |
N/A |
||
|
Network |
Interface |
RJ45 port / 10M / 100M / 1,000Mbps Ethernet |
|
|
Protocol |
TCP/IP, DHCP, DDNS, DNS, PPPoE, UPNP, NTP, SMTP |
||
|
CMS Program |
General_CMS_Eng_V3.0.7.7.T (up to 500 Video channels Platform) |
||
|
Mobile Phone Support |
iPhone / iPad, Android, BlackBerry, Symbian, Windows Mobile Pro |
||
|
Computer System Support |
Windows 2000, XP, Vista, 7, 8 / Mac OS x 10.6/10.7 |
||
|
Compatible Browser |
Google Chrome, Internet Explorer (IE11), Mozilla Firefox, Safari (Mac) |
||
|
3G/WIFI |
NO |
||
|
Free DDNS (P2P) |
P2P Function via iCloud server (http://www.xmeye.net) |
||
|
IP Camera Protocol |
ONVIF 2.3 Version Platform Protocol (IP Camera via Digital Menu) |
||
|
Simultaneous Remote Viewers |
6 Users Online |
||
|
Others |
Operating Temperature |
0°C ~ 55°C |
|
|
Operating Humidity |
10% ~ 90% |
||
|
Dimension |
|||
|
Weight |
0.7 KGS |
||
|
USB Mouse |
YES |
||
|
HDD Screw |
4 PCS (1 Pack) |
||
|
Quick Start Guide (QSG) |
YES |
||
|
Power Supply |
DC12V/2A Power Adapter |
||
|
Package |
10pcs/ctn (693 x 457 x 262mm/carton) |
||
|
Weight |
1.0kg |
||
|
Box Size |
8 cm × 28 cm × 25 cm |
||
